The Sb₂S₃ (D5₈) Structure

You can now

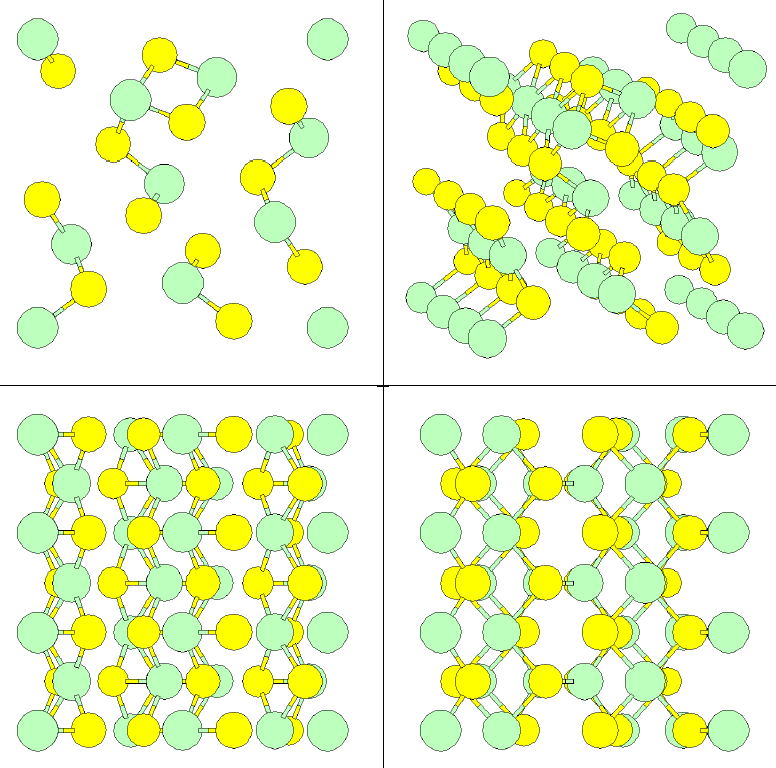

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Strukturbericht uses the Pbnm orientation of space group #62. Here we've rotated the coordinates to correspond to the standard Pmna orientation.

---

• Prototype: Sb₂S₃
• Pearson Symbol: oP20
• Strukturbericht Designation: D5₈
• Space Group: Pnma (Cartesian and lattice coordinate listings available)
• Number: 62
• Reference: Strukturbericht, Vol III, p. 49.
• Primitive Vectors:

  A1	=	a X
  A2	=	b Y
  A3	=	c Z

• Basis Vectors:

  B1	=	+ x1 A1 + ¼ A2 + z1 A3	=	+ x1 a Y + ¼ b Y + z1 c Z	(Sb-I)	(4c)
  B2	=	+ (½ + x1) A1 + ¼ A2 + (½ - z1) A3	=	+ (½ + x1) a Y + ¼ b Y + (½ - z1) c Z	(Sb-I)	(4c)
  B3	=	- x1 A1 - ¼ A2 - z1 A3	=	- x1 a Y - ¼ b Y - z1 c Z	(Sb-I)	(4c)
  B4	=	+ (½ - x1) A1 - ¼ A2 + (½ + z1) A3	=	+ (½ - x1) a Y - ¼ b Y + (½ + z1) c Z	(Sb-I)	(4c)
  B5	=	+ x2 A1 + ¼ A2 + z2 A3	=	+ x2 a Y + ¼ b Y + z2 c Z	(Sb-II)	(4c)
  B6	=	+ (½ + x2) A1 + ¼ A2 + (½ - z2) A3	=	+ (½ + x2) a Y + ¼ b Y + (½ - z2) c Z	(Sb-II)	(4c)
  B7	=	- x2 A1 - ¼ A2 - z2 A3	=	- x2 a Y - ¼ b Y - z2 c Z	(Sb-II)	(4c)
  B8	=	+ (½ - x2) A1 - ¼ A2 + (½ + z2) A3	=	+ (½ - x2) a Y - ¼ b Y + (½ + z2) c Z	(Sb-II)	(4c)
  B9	=	+ x3 A1 + ¼ A2 + z3 A3	=	+ x3 a Y + ¼ b Y + z3 c Z	(S-I)	(4c)
  B10	=	+ (½ + x3) A1 + ¼ A2 + (½ - z3) A3	=	+ (½ + x3) a Y + ¼ b Y + (½ - z3) c Z	(S-I)	(4c)
  B11	=	- x3 A1 - ¼ A2 - z3 A3	=	- x3 a Y - ¼ b Y - z3 c Z	(S-I)	(4c)
  B12	=	+ (½ - x3) A1 - ¼ A2 + (½ + z3) A3	=	+ (½ - x3) a Y - ¼ b Y + (½ + z3) c Z	(S-I)	(4c)
  B13	=	+ x4 A1 + ¼ A2 + z4 A3	=	+ x4 a Y + ¼ b Y + z4 c Z	(S-II)	(4c)
  B14	=	+ (½ + x4) A1 + ¼ A2 + (½ - z4) A3	=	+ (½ + x4) a Y + ¼ b Y + (½ - z4) c Z	(S-II)	(4c)
  B15	=	- x4 A1 - ¼ A2 - z4 A3	=	- x4 a Y - ¼ b Y - z4 c Z	(S-II)	(4c)
  B16	=	+ (½ - x4) A1 - ¼ A2 + (½ + z4) A3	=	+ (½ - x4) a Y - ¼ b Y + (½ + z4) c Z	(S-II)	(4c)
  B17	=	+ x5 A1 + ¼ A2 + z5 A3	=	+ x5 a Y + ¼ b Y + z5 c Z	(S-III)	(4c)
  B18	=	+ (½ + x5) A1 + ¼ A2 + (½ - z5) A3	=	+ (½ + x5) a Y + ¼ b Y + (½ - z5) c Z	(S-III)	(4c)
  B19	=	- x5 A1 - ¼ A2 - z5 A3	=	- x5 a Y - ¼ b Y - z5 c Z	(S-III)	(4c)
  B20	=	+ (½ - x5) A1 - ¼ A2 + (½ + z5) A3	=	+ (½ - x5) a Y - ¼ b Y + (½ + z5) c Z	(S-III)	(4c)

---
